Z80 CPU tester production
@Blog 21 May 2023

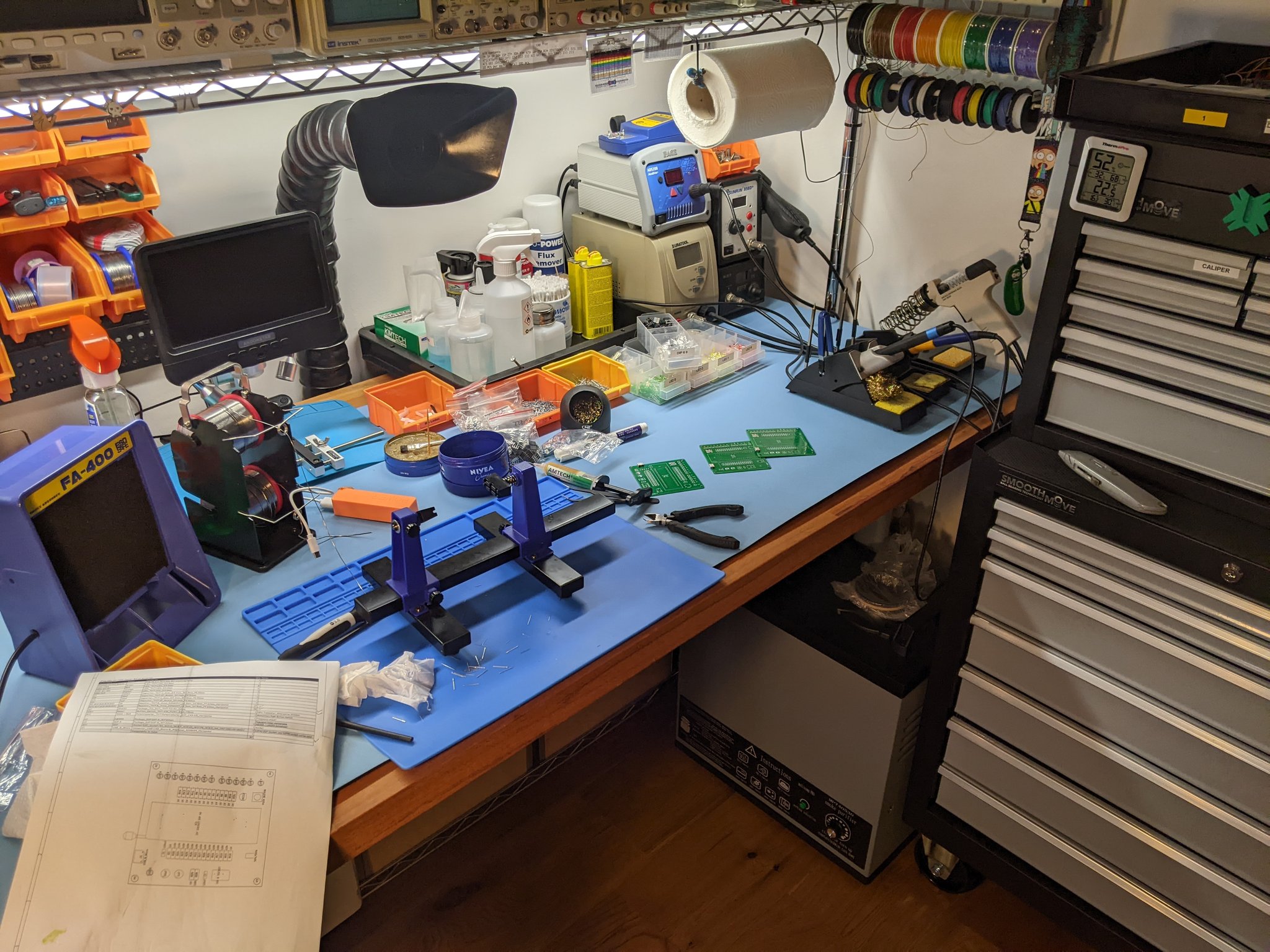

The joy of soldering...

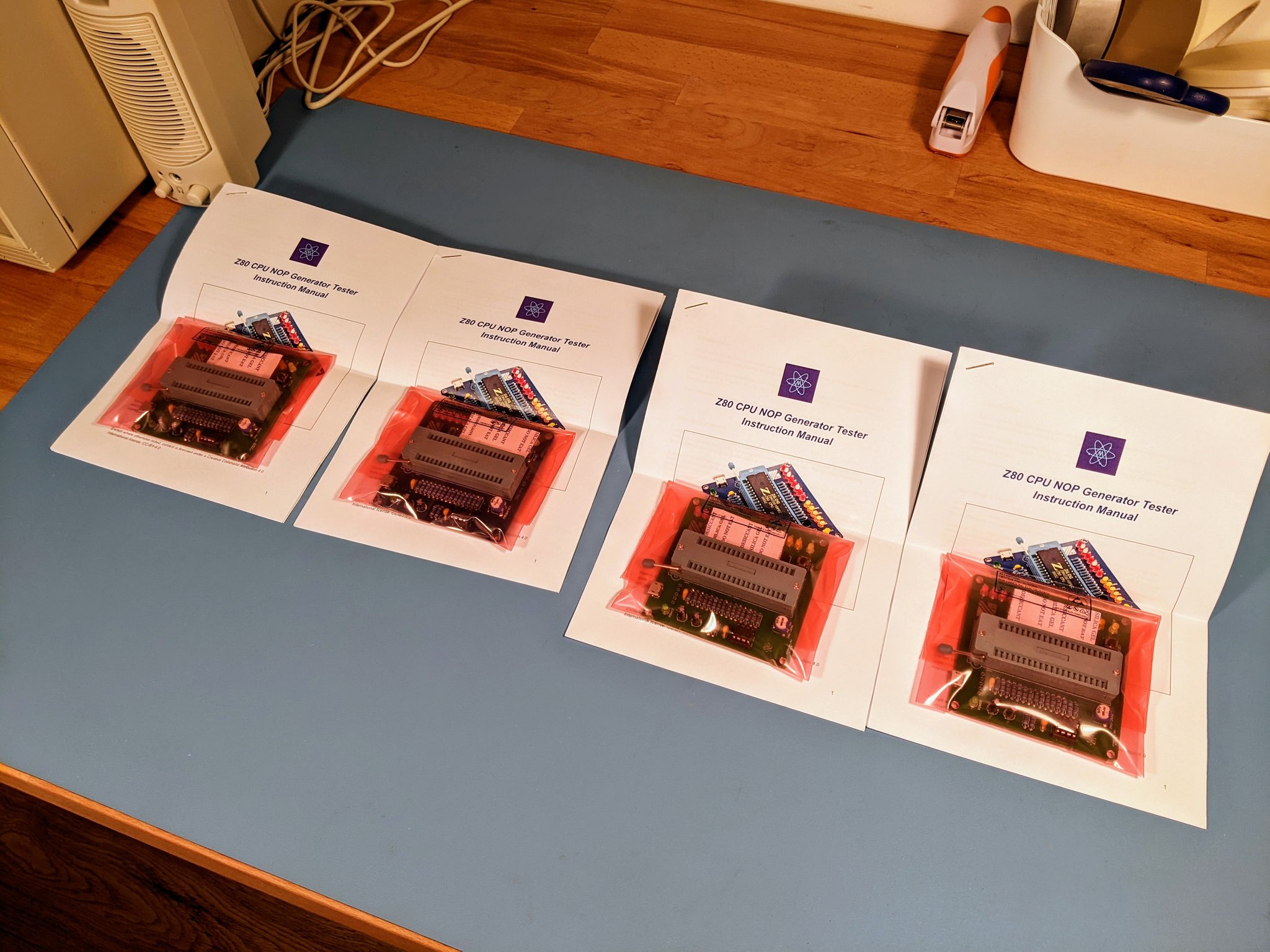

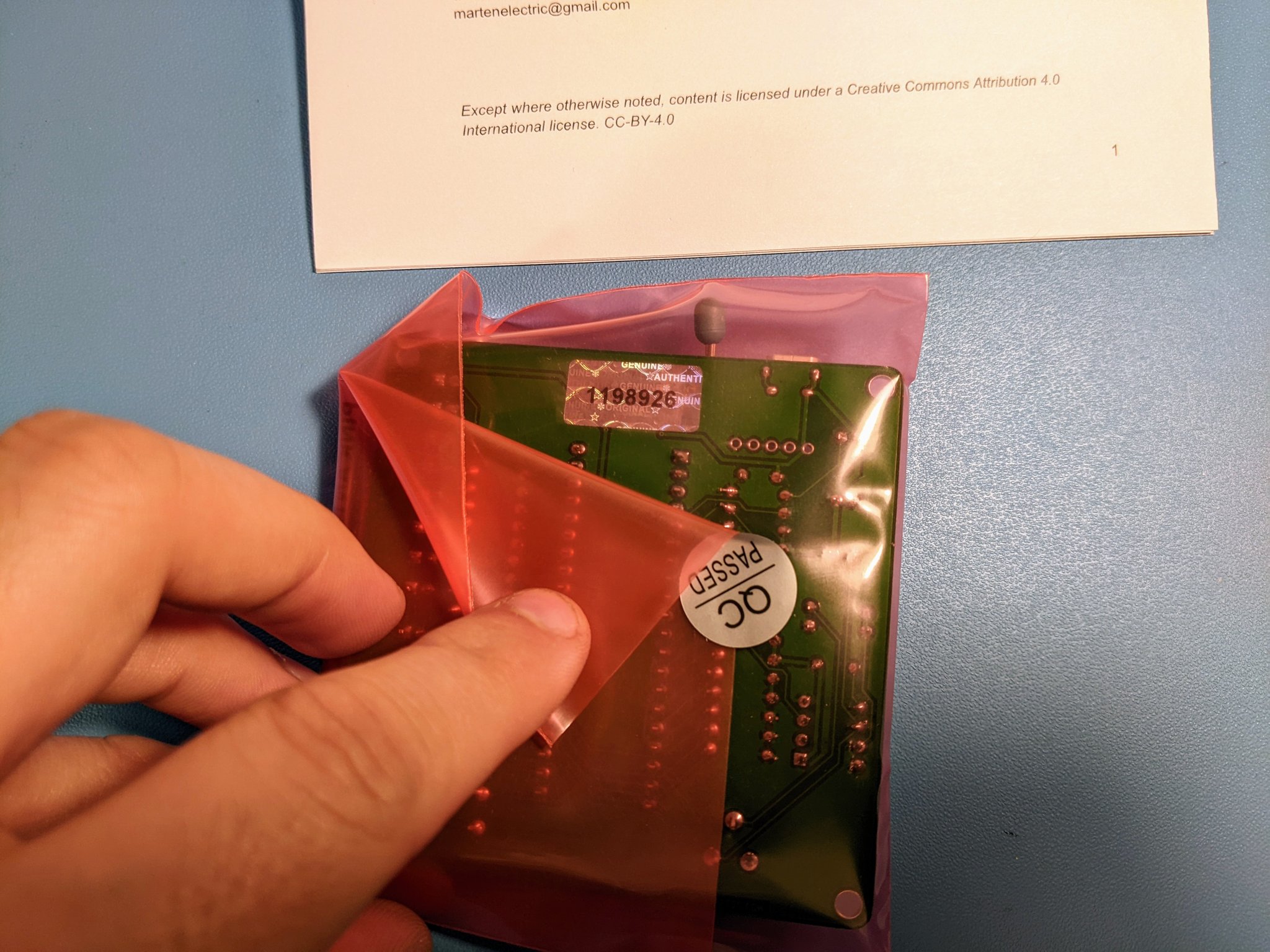

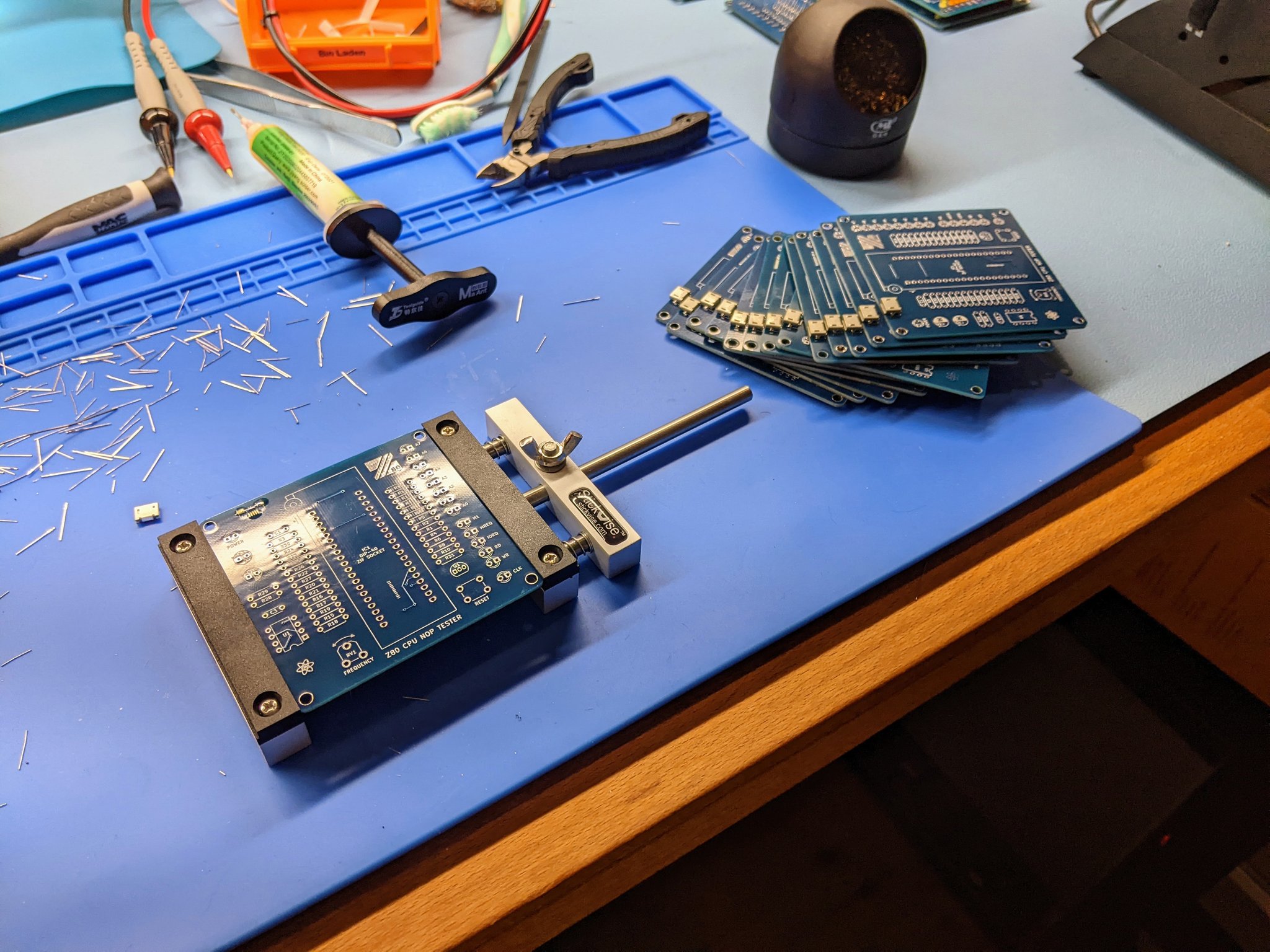

A small batch of Z80 CPU and compatible clones NOP tester. Enthusiasm fade away after the first board 😃 Mind you there is 57 components in each!
click on pictures to enlarge
Full article: Zilog Z80 CPU NOP Tester - NOP operation tester to test Zilog Z80 CPU and compatible clones
