Eurocard DIN41612 3U riser extender PCB card 160mm

Introduction

I have originally designed this riaser card for few of my projects, but this turn out so well that I have now posted all schematic, gerber files and documentation to fellow enthusiast such as yourself :) Perhaps (and I hope) content in this obscured corner of interwebs will inspire you to start your own projects.

Eurocards system in general is enormously versatile for all kinds of projects thanks to standardized mechanical dimensions and quality connectors. You can literally make any project and skale it up as much as you wish. For example this extender card can be used as exnteder card as the name suggest doh..., but also to intercept and trouble shoot signals and as a prototyping platform if you attach solderless breadboard to it.

You can use these cards in industry standard DIN subrack or Eurorack. Card will fit nicely in PCB guide rails with front panel Eurorack if you wish to use one. Card has been designed to be very versatile and you can fit 96 and 64 pin DIN connectors each side if you wish or 64pin female edge connector.
These boards look absolutely gorgeous in standard green solder mask if you going for that standard industrial look. I can advise you where to buy connectors, however you can use any standard 96/64pin DIN Eurocard connectors or 2x32, 64pin PCB edge connectors.

⊂(◉‿◉)つ
Except where otherwise noted, content on this site is licensed under a Creative Commons Attribution 4.0 International license. CC-BY-4.0
I have created content on this website free to use for personal, educational and commercial purposes. If you like or use my work, please mention me or perhaps consider a donation.

or

click on pictures to enlarge

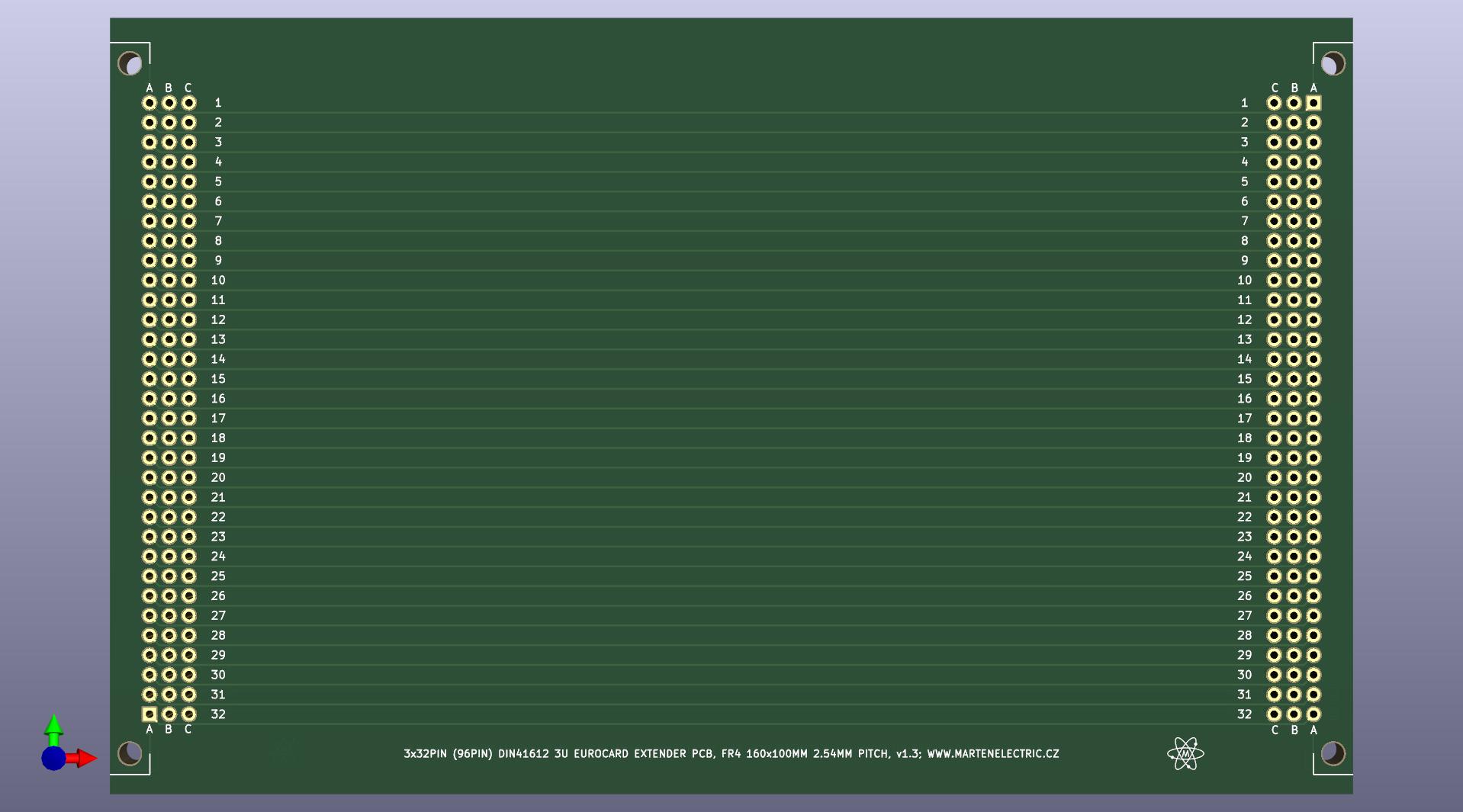

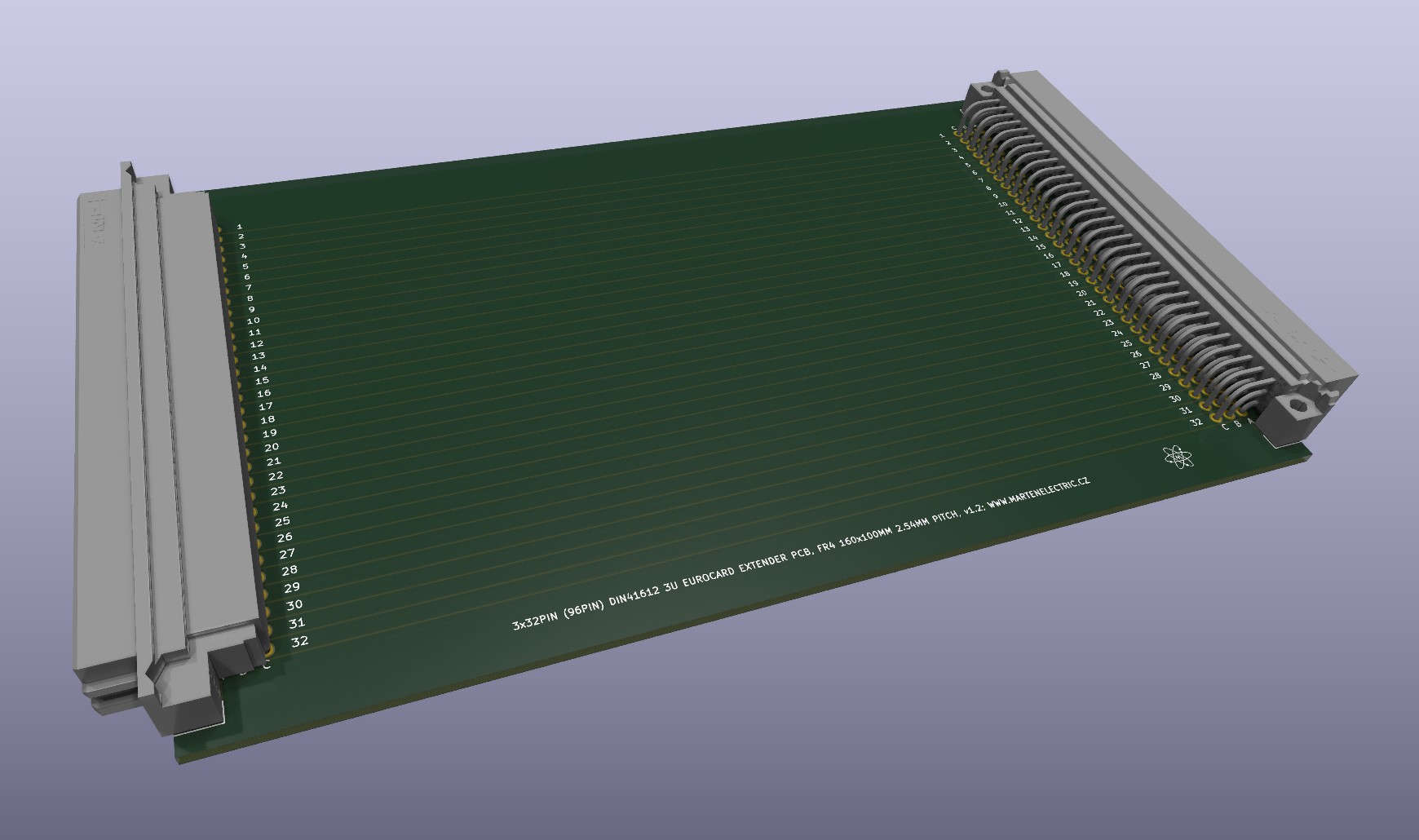

Eurocard DIN41612 3U riser extender PCB card 160mm
Eurocard DIN41612 3U riser extender PCB card 160mm

Purchase item



... but if you feel like getting something for nothing isn't your cup of tea (completely understandable) (ಥ﹏ಥ) and a prefer to support me and get something back in return, then you please purchase this item directly from my on my eBay shop (click on FleaBay logo above). However if you are still up for an adventure (and are happy to have PCB's made yourself in your favourite PCB house - JLCPCB is recommended), then carry on and download gerber files further down. ( ͡° ͜ʖ ͡°)

Specs


Board Type: Extender / riser card
Board Material: FR4-Standard Tg 130-140C Epoxy Glass Composite
Layers: Double sided
PCB Colour: Green colour solder mask, white silk screen lettering
Surface Finish: Lead free HASL-RoHS
External size: 160 x 100mm
Board Thickness: standard 1.6mm fits in standard guide rail and standard Eurocard front panel
Pitch: 2.54mm (100.00 mils)
Hole matrix: 2 x 96 holes for DIN connector (192 holes in total)
Hole size: 1.00mm
Mounting holes: Standard pitch DIN 41612. 4x mounting holes 2.50mm / 3.00mm
Board Connector / Footprint: DIN 41612 2x32pin or 3x32pin 64 / 96 Pin connector, you can also fit 64pin female edge connector
Copper Thickness: 35um
Card weight: 55g

Bill of materials


The following list contains the parts that are required to assemble this card.

Identifier Value Qty Notes
Printed Circuit Board 160mm DIN41612 3U riser card 1 v1.2
Hardware M2.5 x 10 mm screw 2
Hardware M2.5 nut 2
Connector Male DIN 41612 96pin 3x32pin right angle connector 1
Connector Male DIN 41612 64pin 2x32pin right angle connector 1 2nd alternative use
Connector 2x32pin 64pin PCB edge right angle connector 0.1" pitch 2 3rd alternative use

Assembly instructions and notes


Gerber files contain " JLCJLCJLCJLC" to silk layer. You can specify a location of the order number, select the "Specify a location" option when you place an order. Only if you order via JLCPCB
. ■ Fit Female and Male DIN 41612 96pin 3x32pin right angle connector or alternatives you wish to use
■ Use M2.5 screws and nuts to hold DIN connectors in place, thse don't need to be fitted to achieve strong mechanical connection however

Schematic


File type File name File size Last modified
Not available for this project. - - -

Design Files


File type File name File size Last modified
PCB layers v1.2 pcblayers_eurocard_riser160_v12.pdf 138 kB 03/01/2022
Gerbers 160 x 100 mm, 2 Layer FR4; v1.2 gerber_3u160extender_v12.zip 79 kB 03/01/2022

Photographs


click on pictures to enlarge

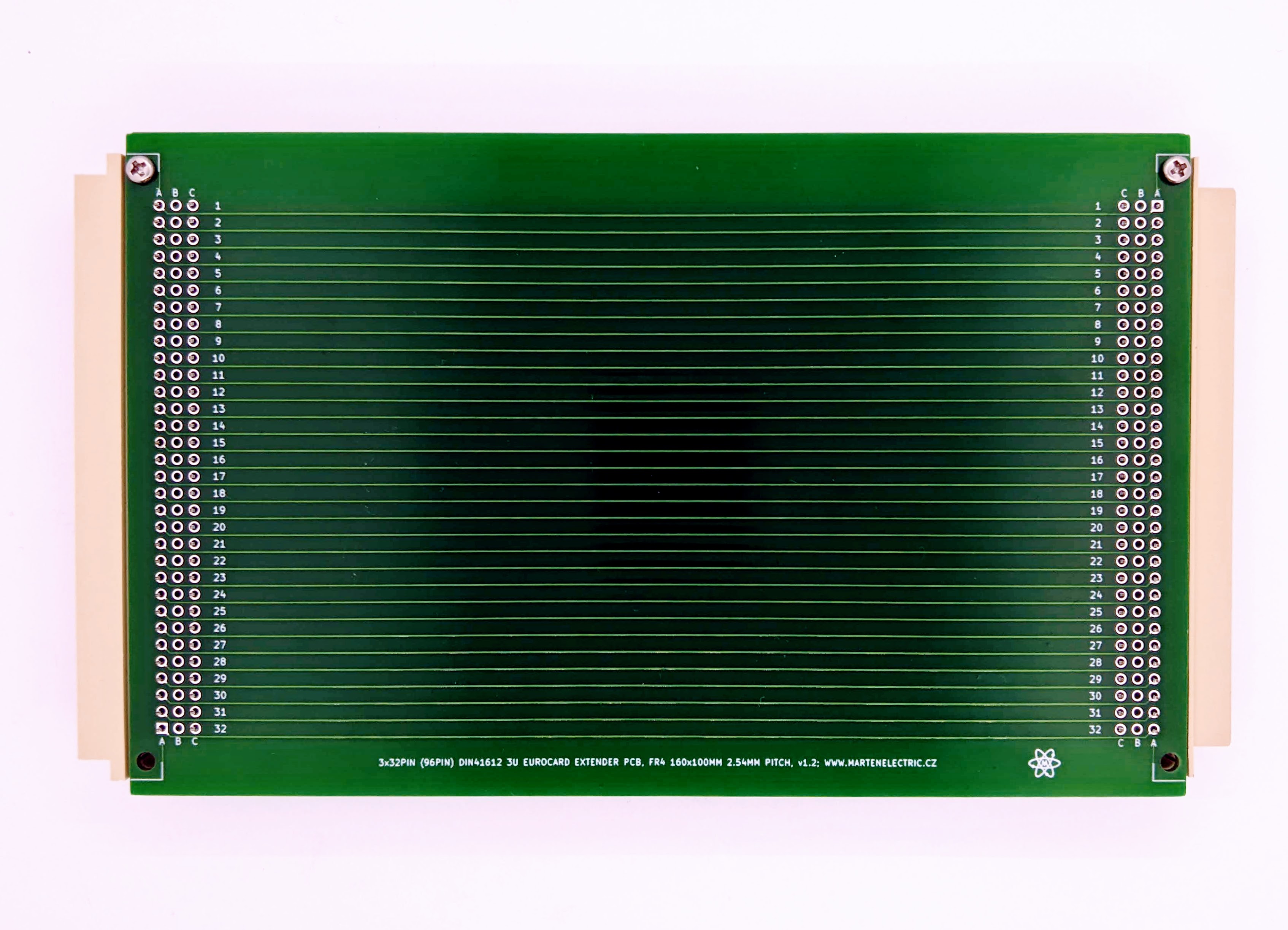

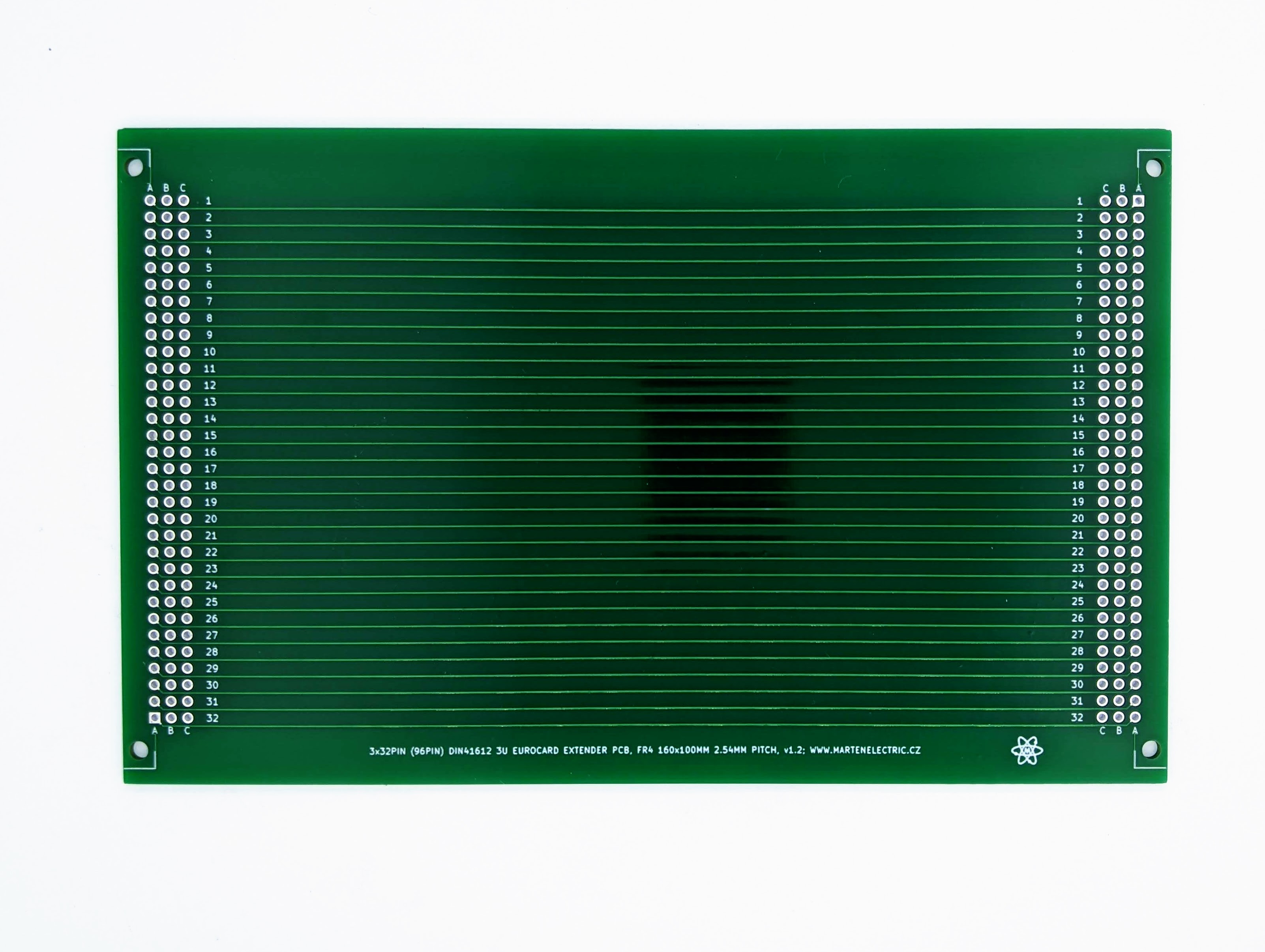

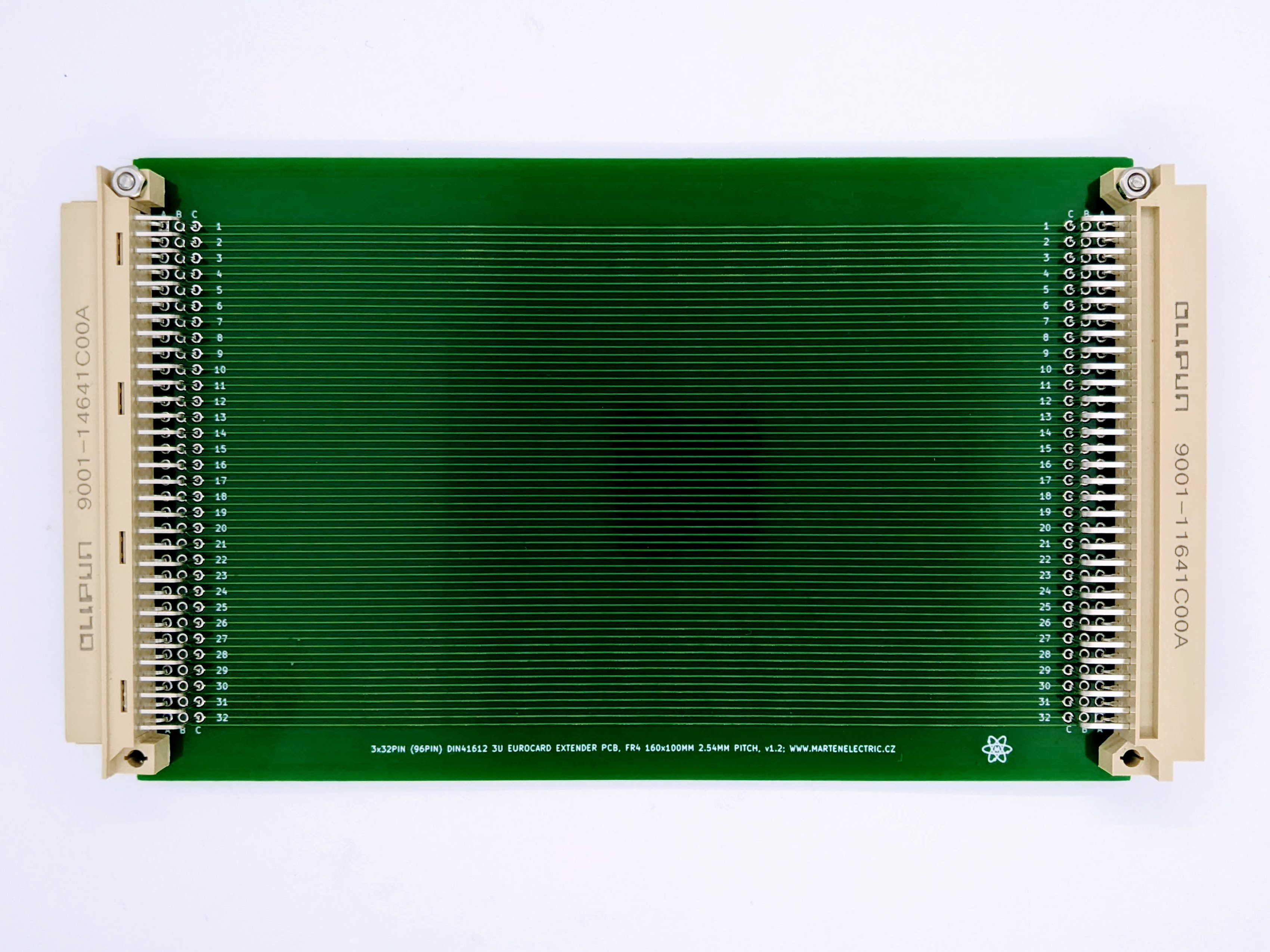

Eurocard DIN41612 3U riser extender PCB card 160mm

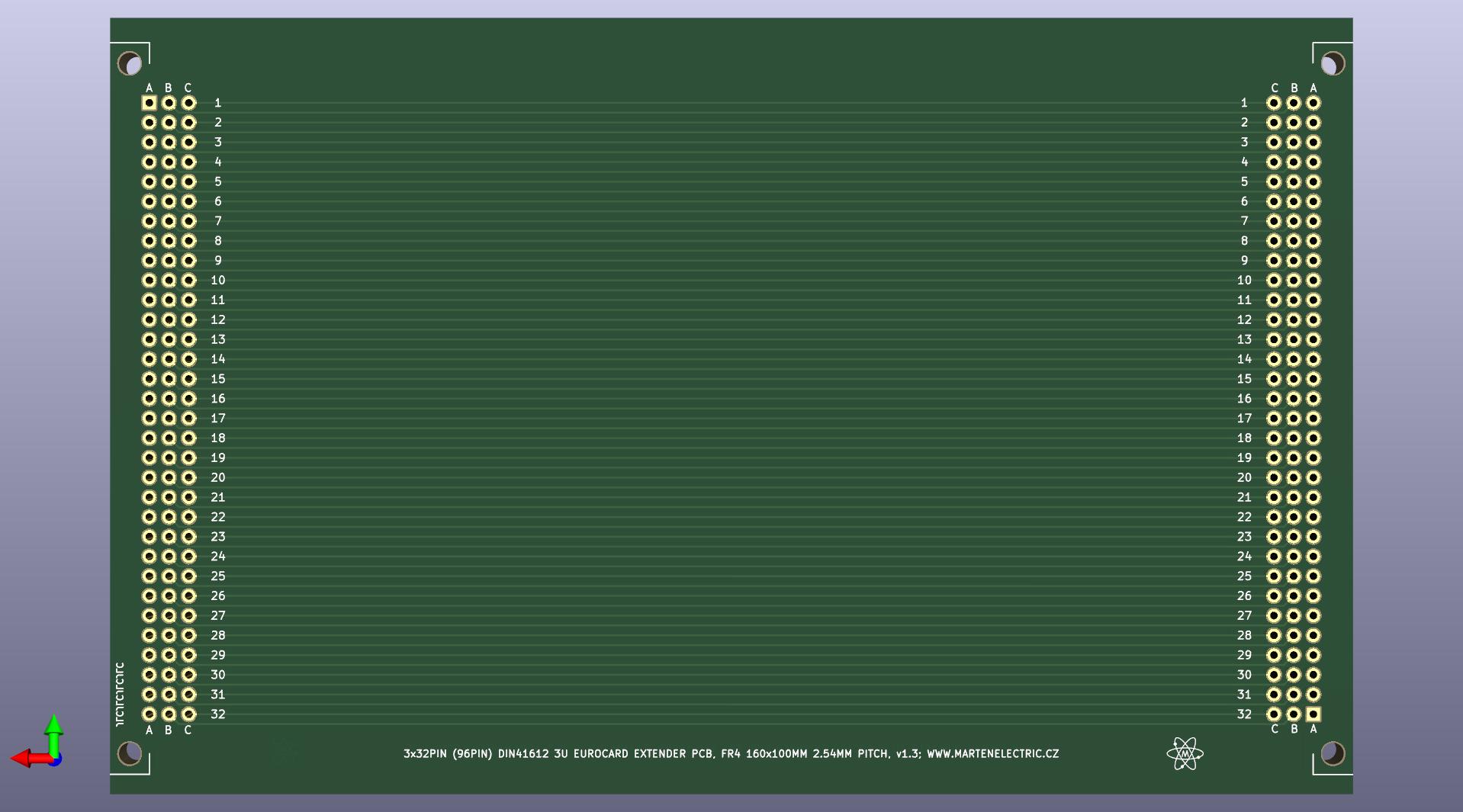

Eurocard DIN41612 3U riser extender PCB card 160mm
gerber files and photographs may vary; v1.2 pictured

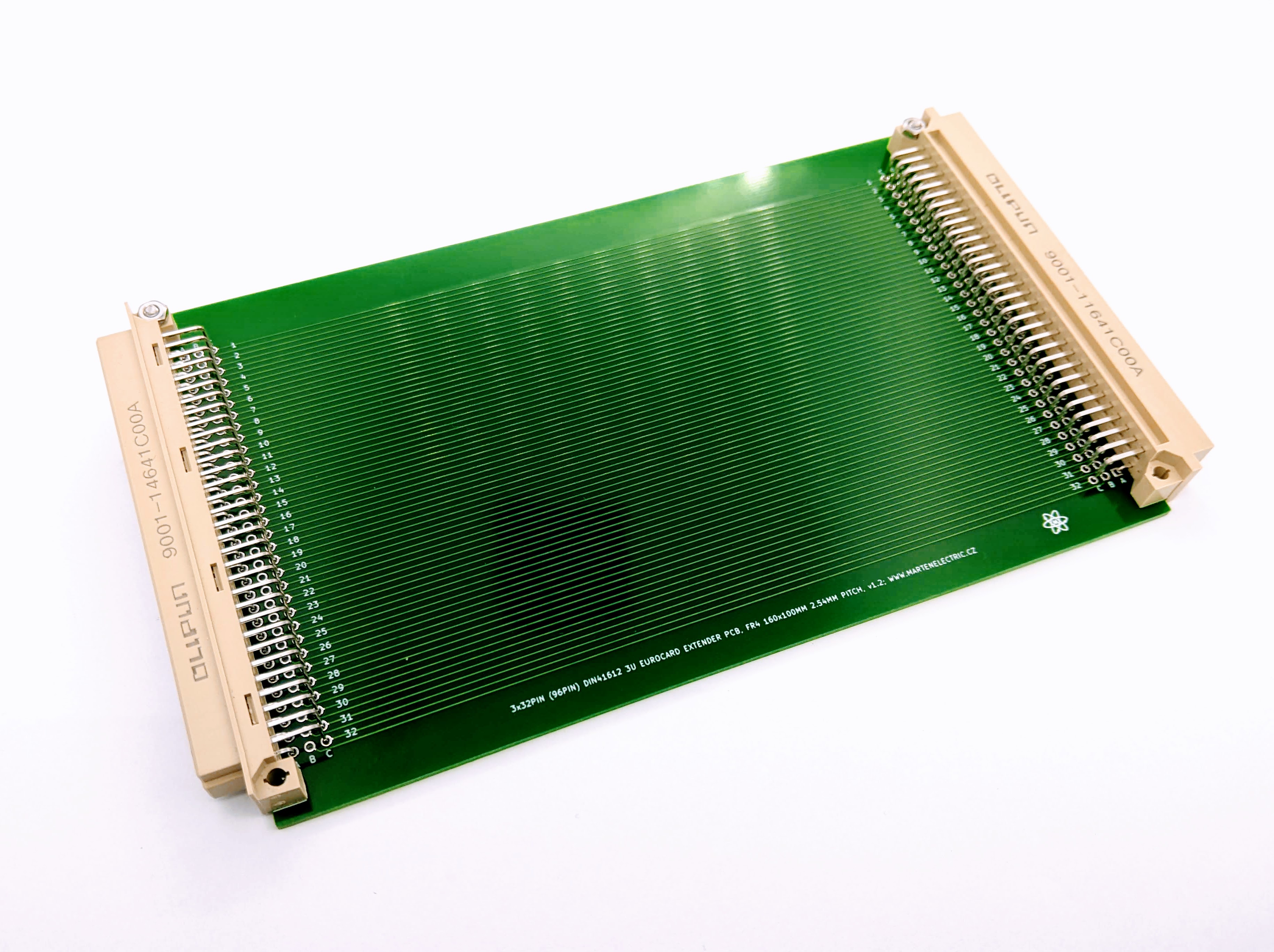

Eurocard DIN41612 3U riser extender PCB card 160mm

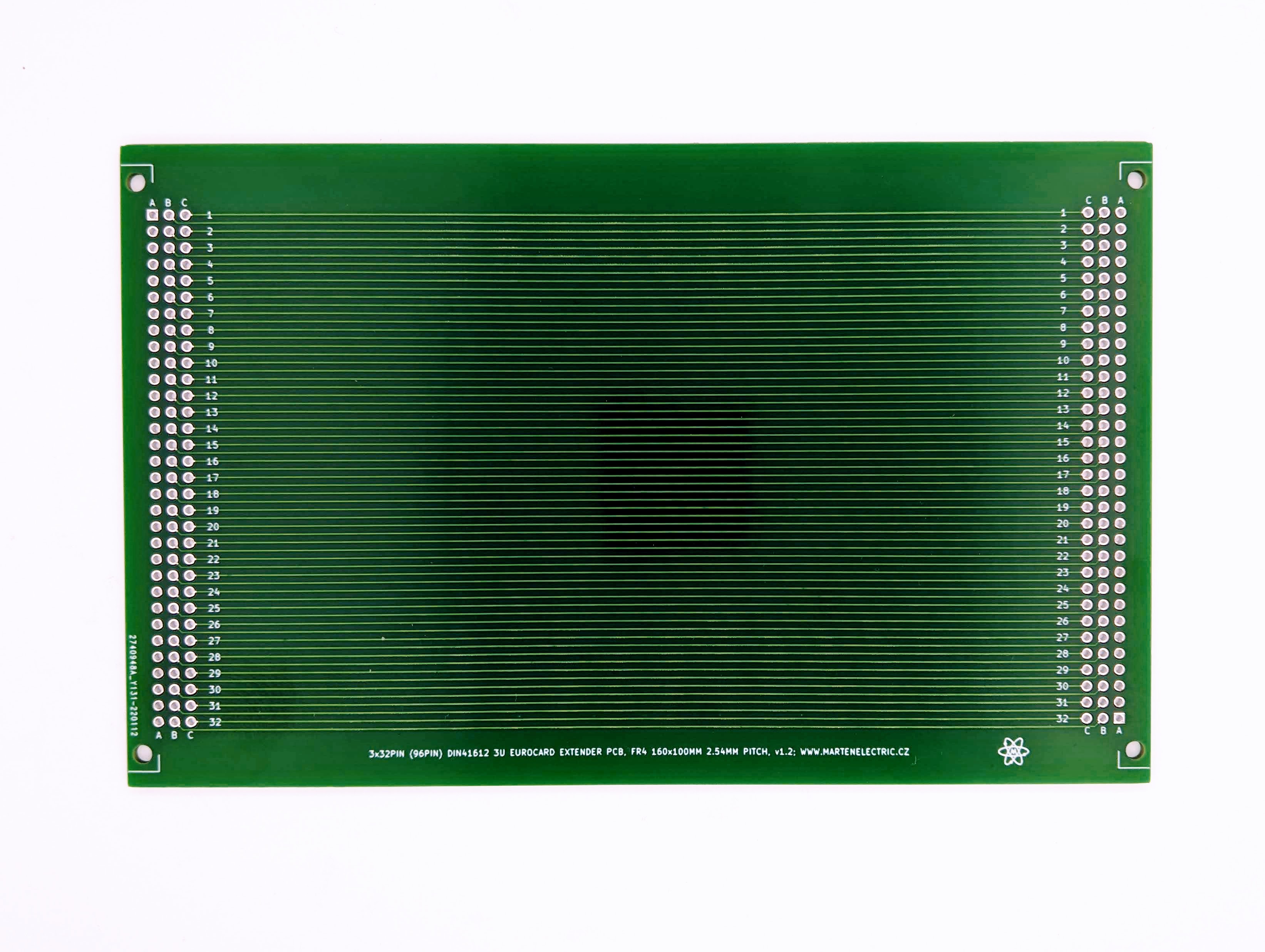

Eurocard DIN41612 3U riser extender PCB card 160mm

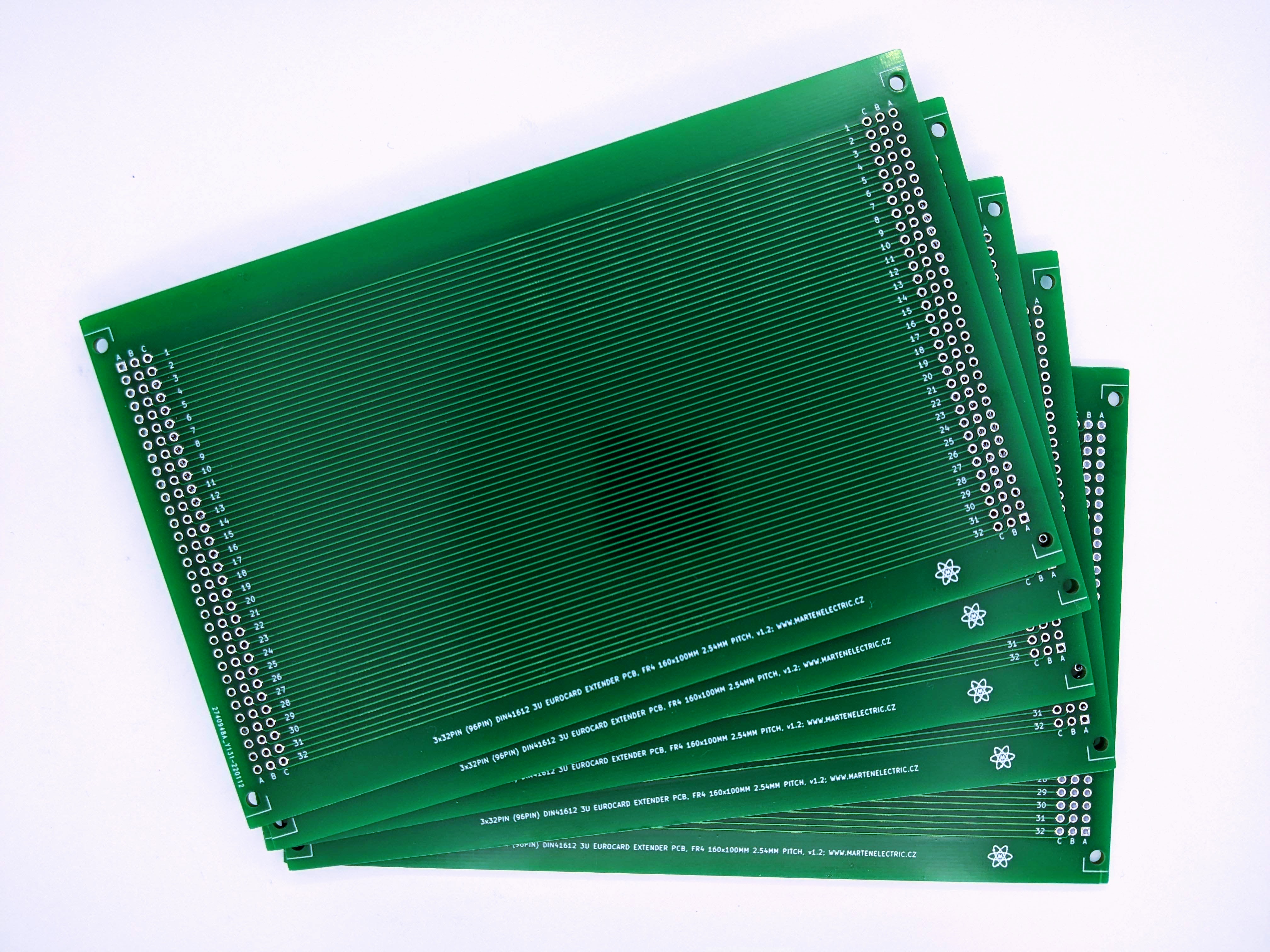

Eurocard DIN41612 3U riser extender PCB card 160mm

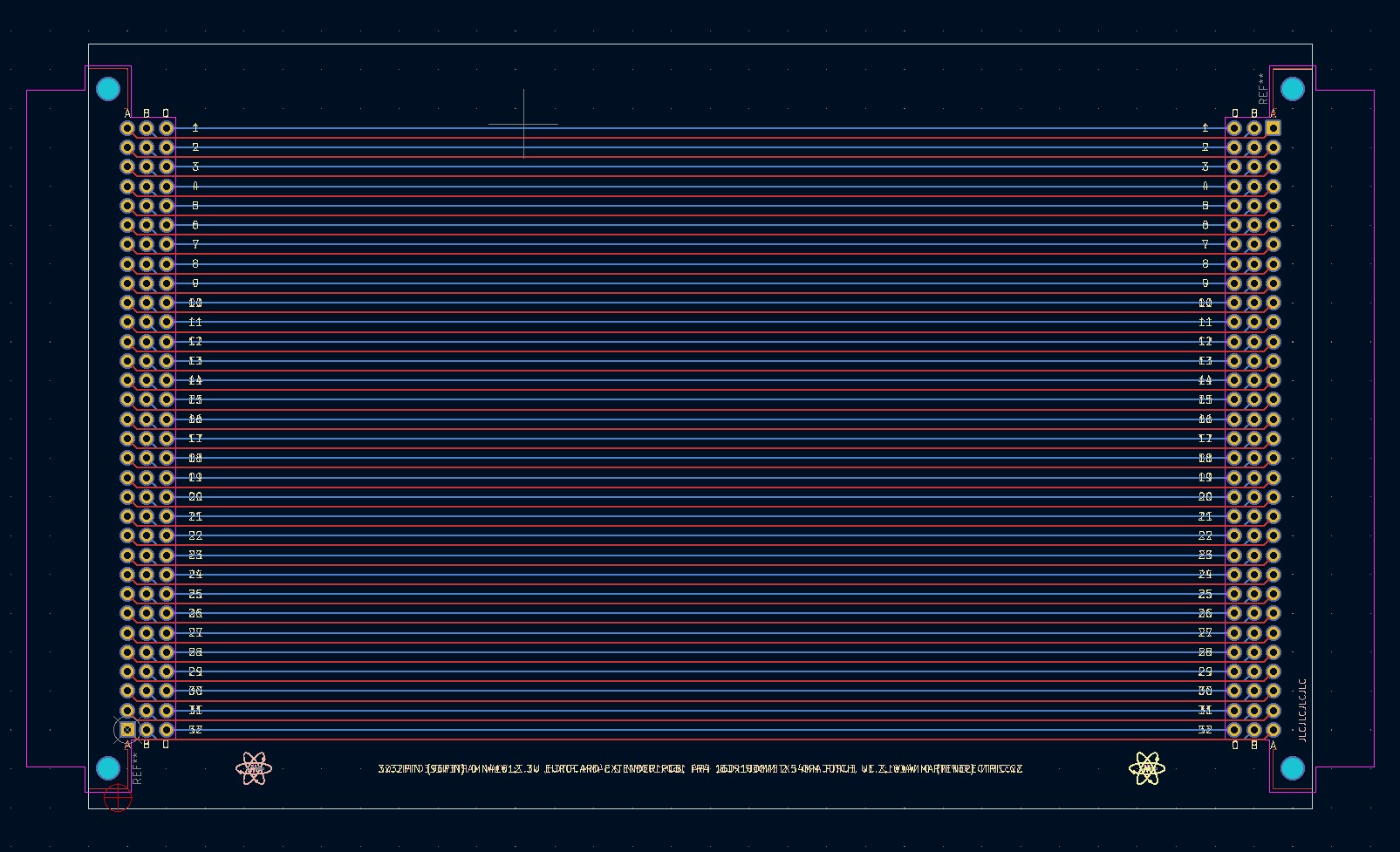

Eurocard DIN41612 3U riser extender PCB card 160mm
Eurocard DIN41612 3U riser extender PCB card 160mm
Eurocard DIN41612 3U riser extender PCB card 160mm

Versions and revisions


This section lists the project version and revision history.

v1.2

■ Various cosmetic updates
■ Various silkscreen updates.
