Z80 CPU tester production
@Blog 15 May 2023
Fresh from the oven
Freshly baked and smell gorgeous.

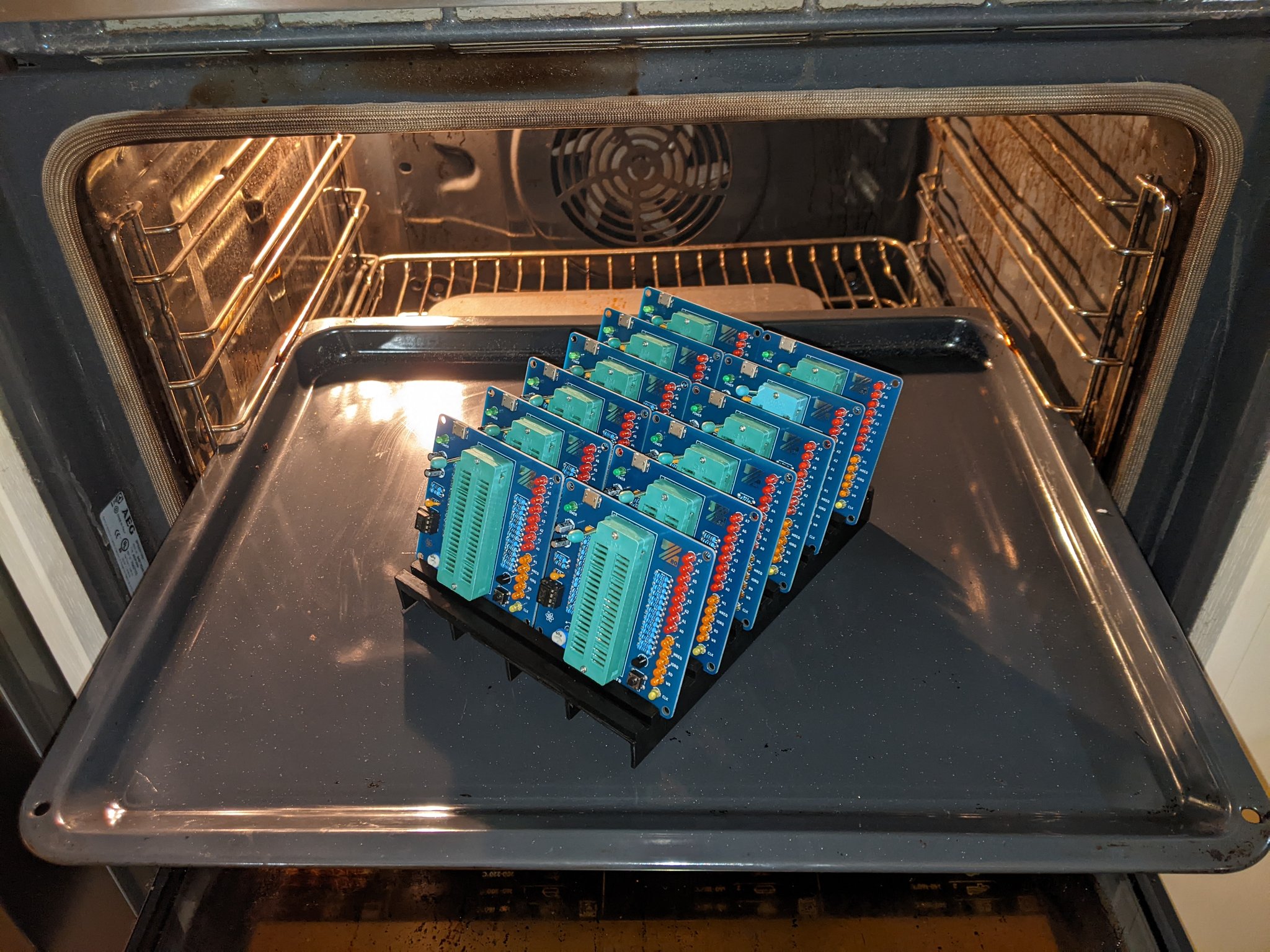

This ne of the last stages of manufacting prir to final testing when PCB's are taken from ultrasonic cleaner to dry in the oven, approximately 1hour @ 50C.
click on pictures to enlarge
Full article: Zilog Z80 CPU NOP Tester - NOP operation tester to test Zilog Z80 CPU and compatible clones
